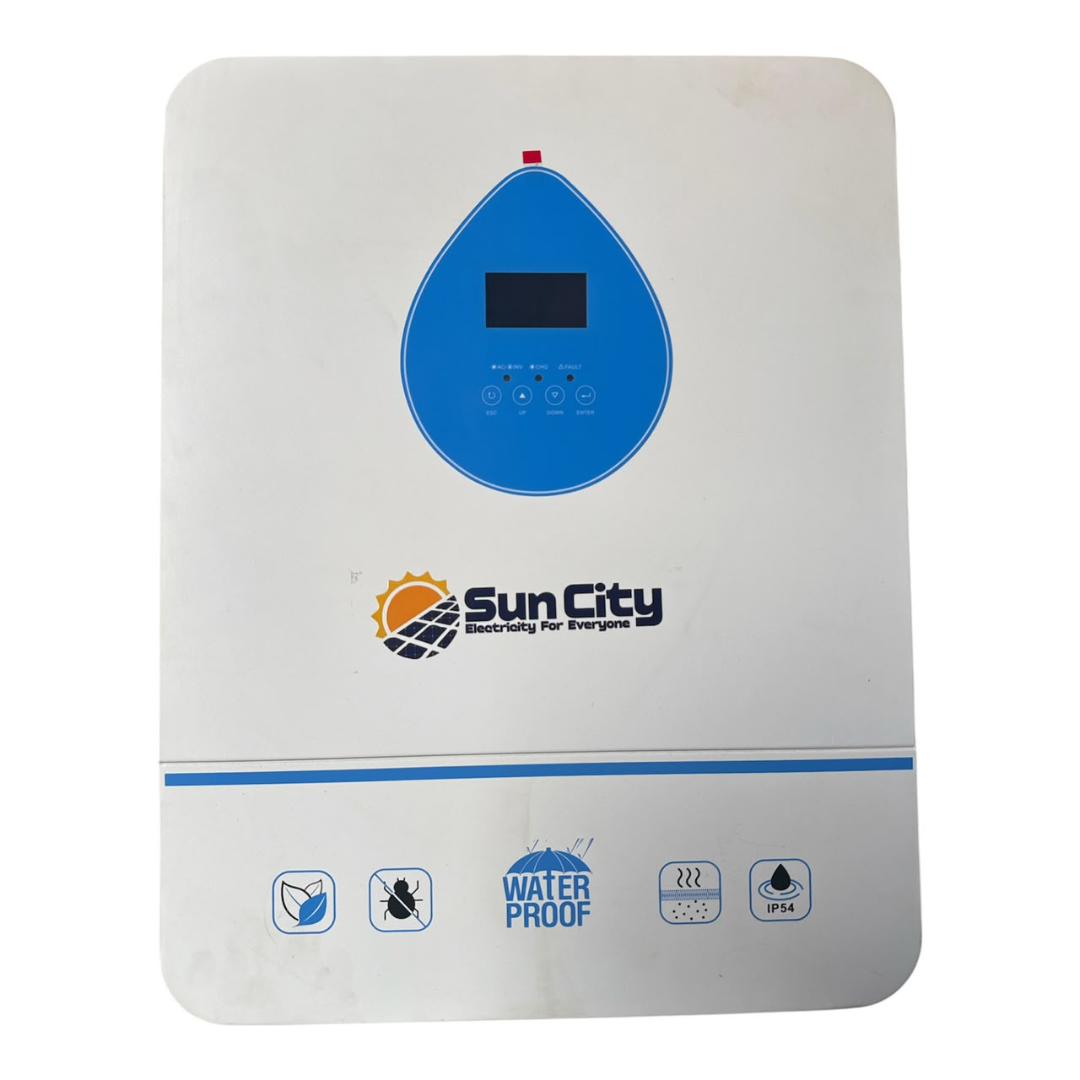

SUNCITY HYBRID INVERTER TC6248SMHG 6200W 48V 6.2KVA

TC6248SMHG is a high-performance hybrid inverter engineered to meet the power demands of larger homes, businesses, farms, and commercial installations. With a 6200W (6.2KVA) output and a 48V battery system, it delivers greater efficiency, higher power capacity, and extended backup performance for medium to large solar energy systems.

Its built-in remote monitoring allows users to track system performance and make adjustments conveniently from anywhere.

Key specifications

• Capacity-6200VA/6000W
• PV and DC/AC-6500VA/6500W
• Solar mode
• Solar panel power-8500w
• Max charging current-120A
• Max input current-36A
• Max solar voltage-500VDC
• Inverter mode
• Battery voltage range-42-64VDC
• Max battery discharge current -143A
• AC output-27A
• AC input
• AC charger-54VDC
• AC input-230VAC/40.1A
• AC output-230VAC/ 27.4A
