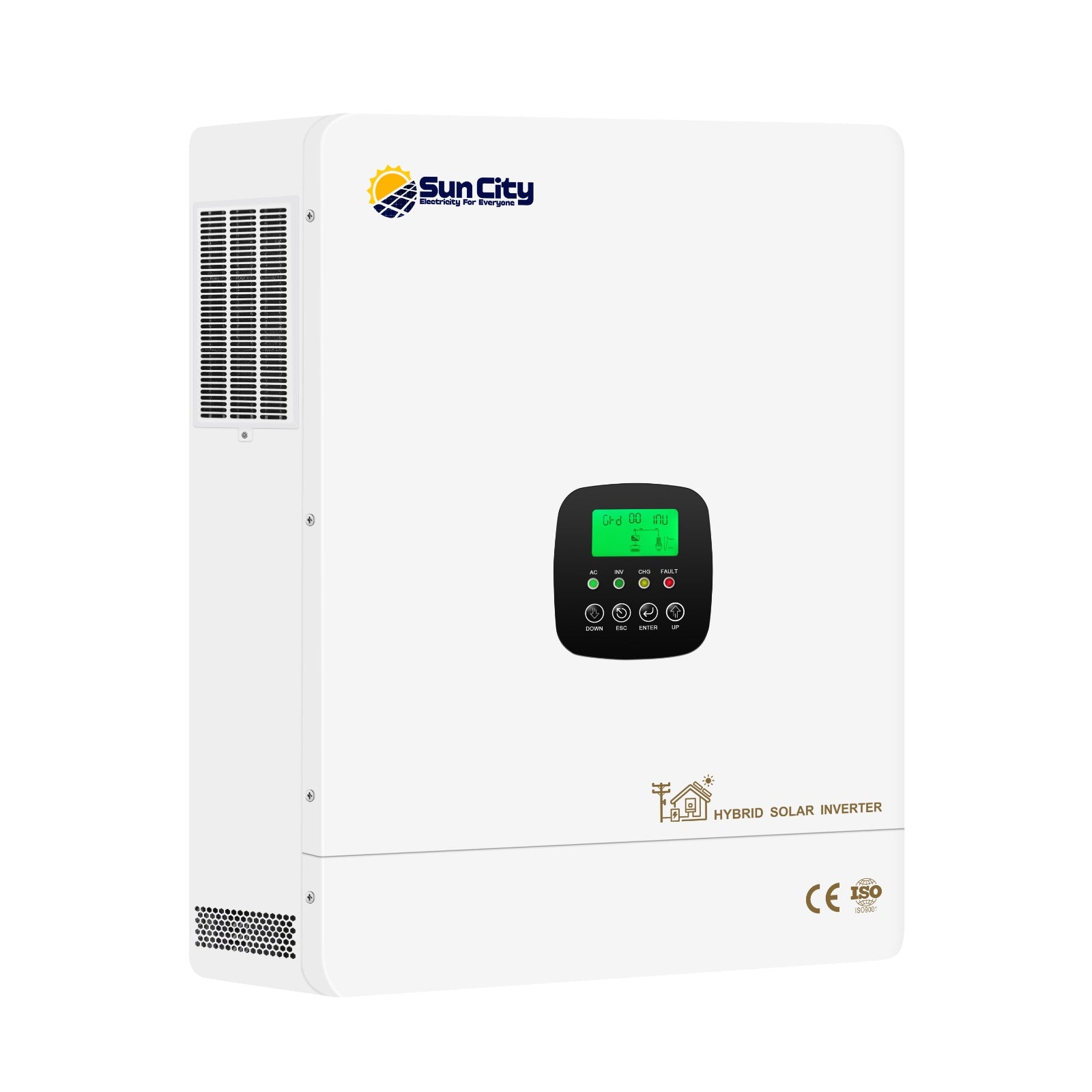

SUNCITY HYBRID INVERTER HFP63224 6300W 48V C/W REMOTE MONITORING

The SUNCITY HYBRID INVERTER HFP63224 delivers robust 6300W power capacity, engineered for demanding off-grid and hybrid solar applications.

 Operating at 48V, this inverter seamlessly converts DC power to AC, supporting both battery storage and grid integration. Built-in remote monitoring capabilities enable real-time system oversight and performance tracking from any location.

 Ideal for residential and commercial installations requiring reliable backup power and energy independence. Advanced hybrid technology maximizes solar utilization while maintaining consistent power supply during load fluctuations.

Key features:

• Rated power: 6300W
• Model: HFP63248
• AC input: 230 VAC, 50Hz/60Hz, 49Amax
• AC output: 230VAC, 50Hz/60Hz, 27.4A

Battery parameter:

• DC input: 48VDC, 145.8A
• Max AC charging current: 80A
• Max PV charging current: 120A
• Max charging current: 120A

PV input parameter:

• Max PV input power :7000W
• Max PV input Voltage(Voc): 500VDC
• Max PV input current: 27A
• MPPT Tracking range: 80-450VDC
• Rated PV input voltage: 360VDC
• Number of MPPT: 1
