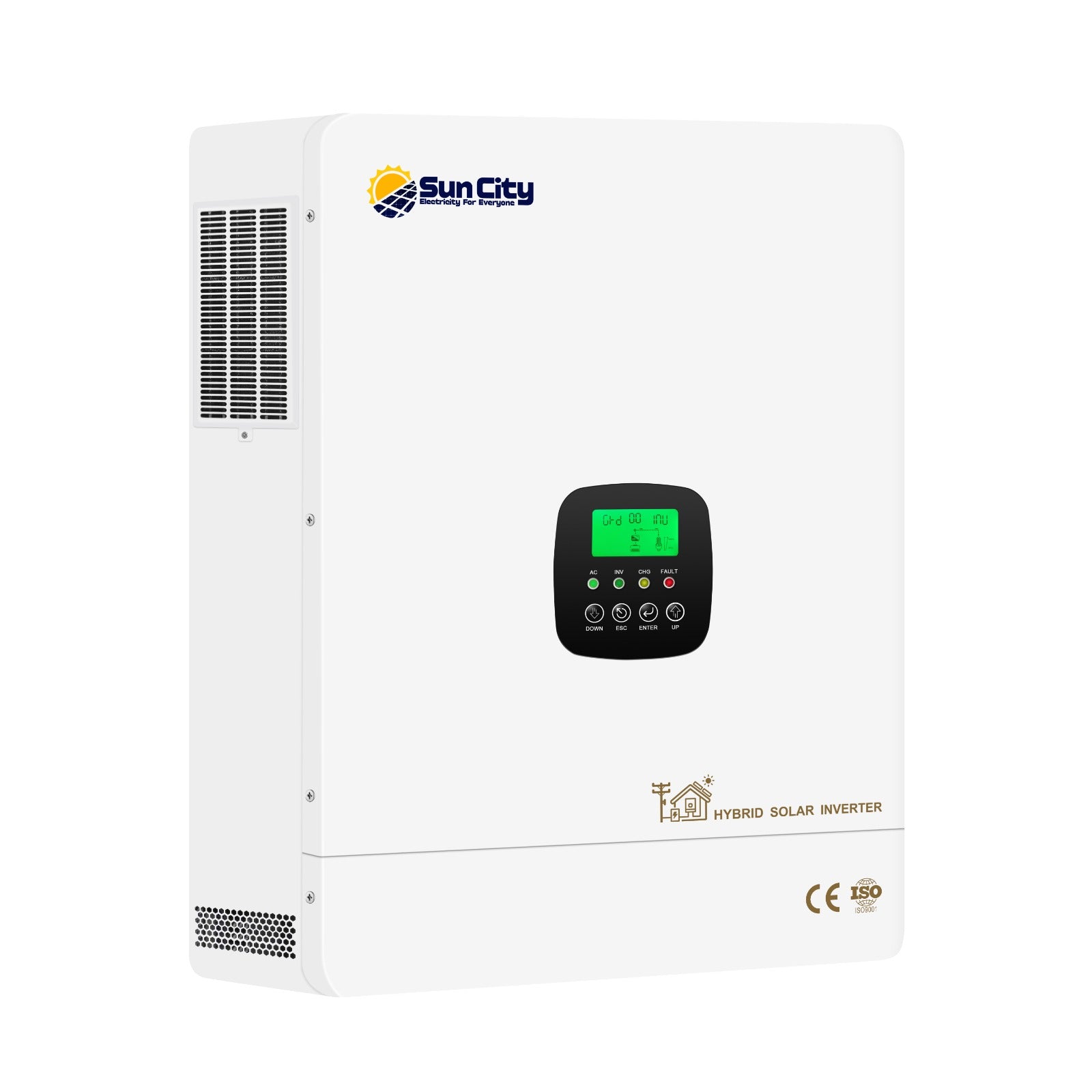

SUNCITY HYBRID INVERTER HFP33224 3300W 24V C/W REMOTE MONITORING

The SUNCITY HYBRID INVERTER HFP33224 delivers 3300W of reliable power conversion for off-grid and grid-tie applications.

This 24V hybrid inverter seamlessly switches between solar, battery, and mains power, optimizing energy efficiency while reducing grid dependency. Built-in MPPT charge controller maximizes solar panel output, while the integrated remote monitoring system enables real-time performance tracking and system management from anywhere.

Ideal for residential and commercial installations requiring dependable backup power and energy independence.

Key features:

• Rated power: 3300W
• Model: HFP33224
• AC input: 230 VAC, 50Hz/60Hz, 25.1Amax
• AC output: 230VAC, 50Hz/60Hz, 14.3A

Battery parameter:

• DC input: 24VDC, 152.7A
• Max AC charging current: 80A
• Max PV charging current: 120A
• Max charging current: 120A

PV input parameter:

• Max PV input power :5000W
• Max PV input Voltage(Voc): 500VDC
• Max PV input current: 18A
• MPPT Tracking range: 40-450VDC
• Rated PV input voltage: 360VDC
• Number of MPPT: 1
